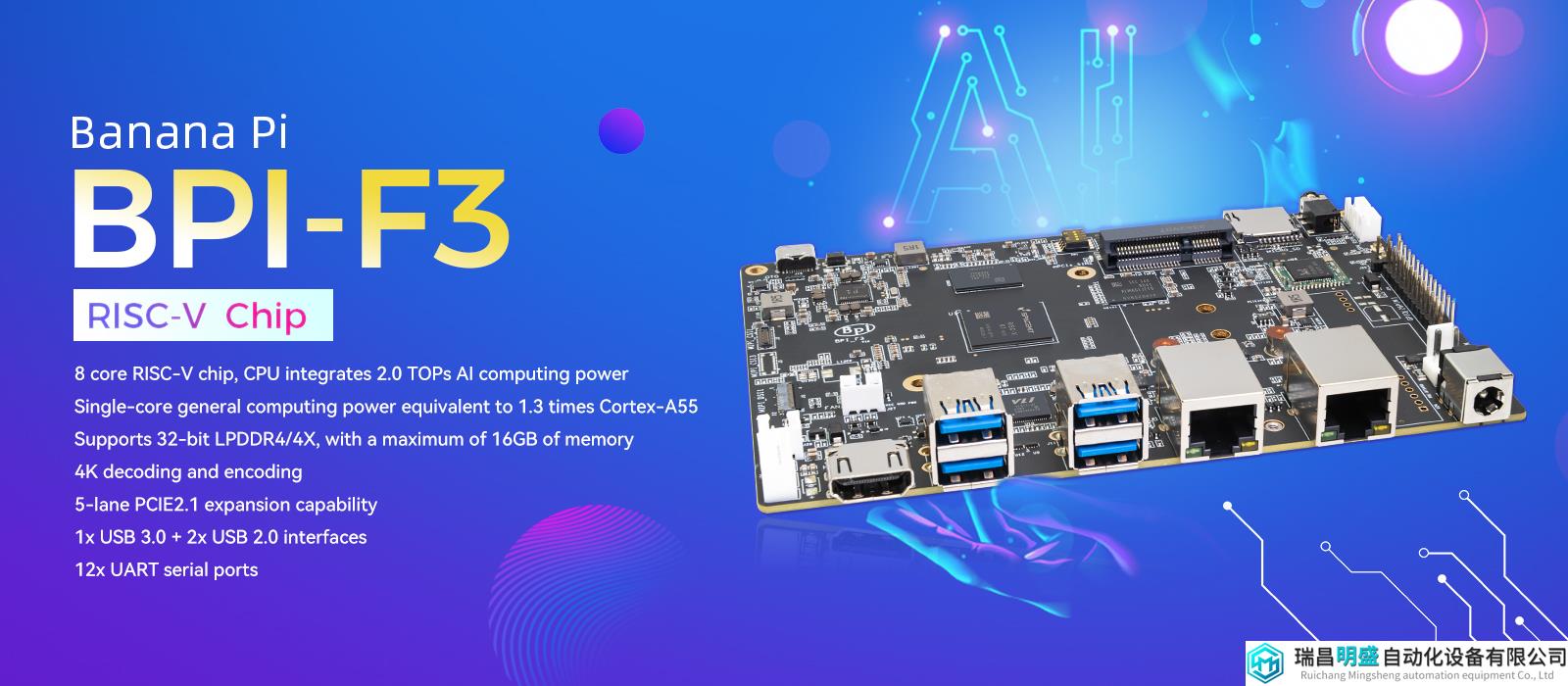

BPI-F3 Introduction

Banana Pi BPI-F3 is a industrial grade RISC-V development board, it design with SpacemiT K1 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 4G DDR and 16G eMMC onboard.2x GbE Ethernet prot, 4x USB 3.0 and PCIe for M.2 interface, support HDMI and Dual MIPI-CSI Camera.

Key Features

• 8 core RISC-V chip, CPU integrates 2.0 TOPs AI computing power
• Single-core general computing power equivalent to 1.3 times Cortex-A55
• Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory
• 4K decoding and encoding
• 5-lane PCIE2.1 expansion capability
• 1x USB 3.0 + 2x USB 2.0 interfaces
• 12x UART serial ports
• Operating temperature range: -40°C to 85°C

Application direction

• NAS
• Laptop
• Intelligent robotics
• Industrial control
• AI edge computing
