STM32设置为I2C从机模式

STM32的I2C作为主机的情况相信很多同学都用过，网上也有很多教程，但是作为从设备使用的例子应该不多，本文通过硬件和软件的层面，介绍如何把STM32设置为一个I2C从机。

1 硬件连接

测试芯片：STM32F103ZET6

测试方法：用一个USB转I2C的工具接到STM32的I2C引脚上，通过上位机工具进行读写操作。如果没有这个工具，也可以用另外一个stm32或者其他设备测试通讯，同时也可以借助示波器或者逻辑分析仪来辅助调试。

硬件连接：

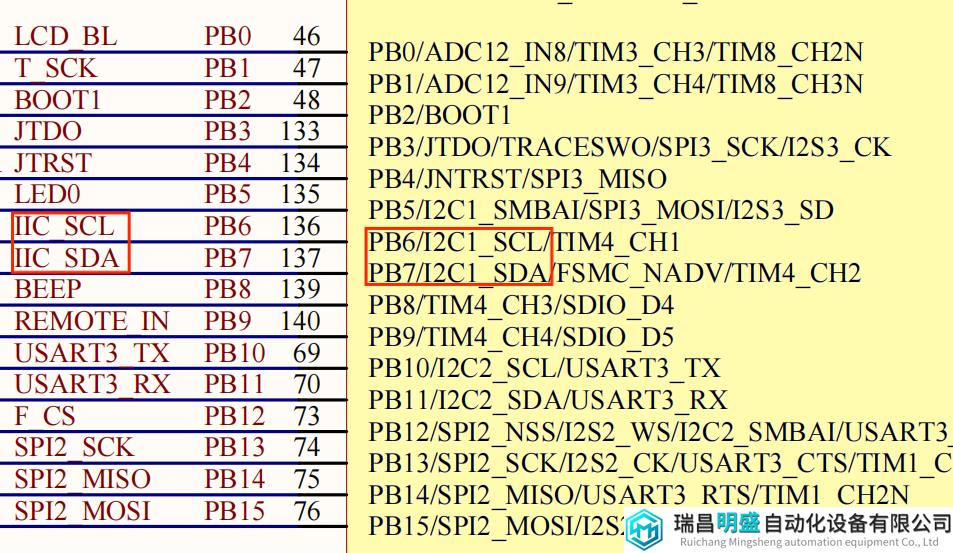

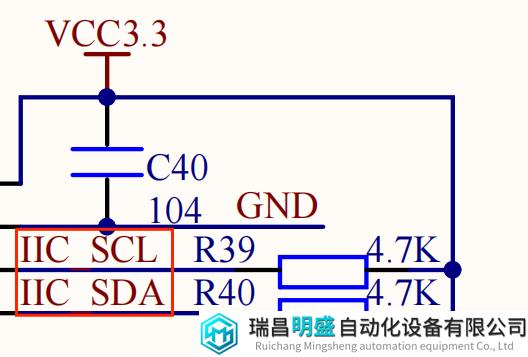

STM32这边使用硬件I2C1(PB6、PB7)，并外接上拉电阻。

2 软件编程

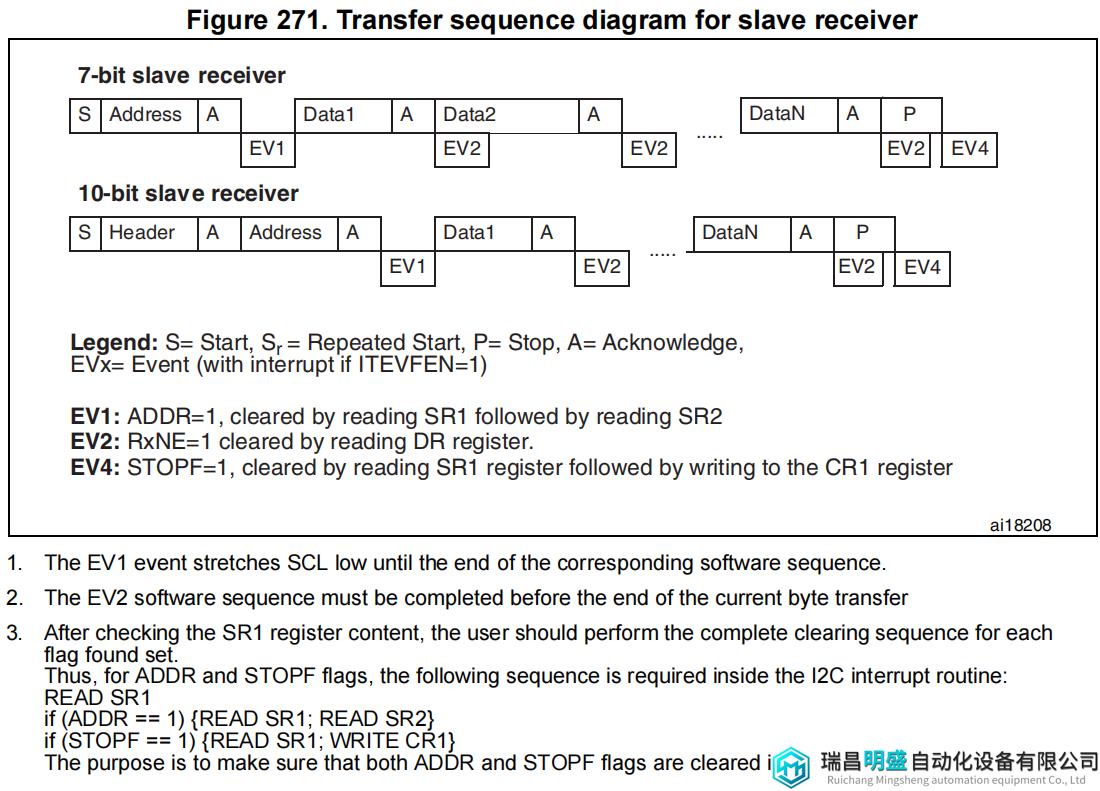

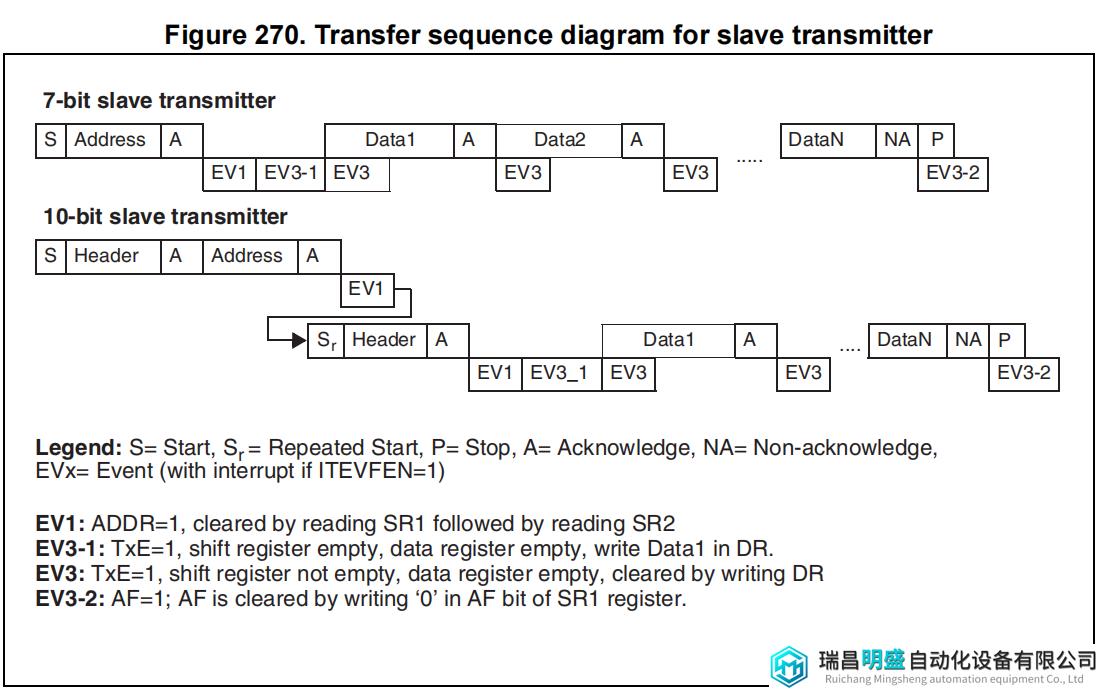

根据STM32数据参考手册，I2C作为从设备时发送和接收的流程如下：

测试例程：定义一个256字节的buffer用来存放I2C从机的数据，默认赋初值0-255，然后通过中断的方式实现I2C数据读写。

示例代码如下：

#include "stm32f10x.h"
#include "stm32f10x_gpio.h"
#include "stm32f10x_rcc.h"
#include "stm32f10x_i2c.h"
#include "misc.h"

#define I2CSLAVE_ADDR           0x40 << 1  // address is 0x40

#define I2C1_CLOCK_FRQ          100000     // I2C-Frq in Hz (100 kHz)
#define I2C1_RAM_SIZE           256        // RAM Size in Byte

#define I2C1_MODE_WAITING       0          // Waiting for commands
#define I2C1_MODE_SLAVE_ADR_WR  1          // Received slave address (writing)
#define I2C1_MODE_ADR_BYTE      2          // Received ADR byte
#define I2C1_MODE_DATA_BYTE_WR  3          // Data byte (writing)
#define I2C1_MODE_SLAVE_ADR_RD  4          // Received slave address (to read)
#define I2C1_MODE_DATA_BYTE_RD  5          // Data byte (to read)

uint8_t i2c1_mode = I2C1_MODE_WAITING;
uint8_t i2c1_ram_adr = 0;
uint8_t i2c1_ram[I2C1_RAM_SIZE];

uint8_t Get_I2C1_Ram(uint8_t adr)
{
    return i2c1_ram[adr];
}

void Set_I2C1_Ram(uint8_t adr, uint8_t val)
{
    i2c1_ram[adr] = val;
    return;
}

void I2C1_Ram_Init(void)
{
    uint16_t i;
    for (i = 0; i < 256; i++)
    {
        Set_I2C1_Ram(i, i);
    }
}

void I2C1_Slave_Init(void)
{
    GPIO_InitTypeDef  GPIO_InitStructure;
    NVIC_InitTypeDef NVIC_InitStructure;
    I2C_InitTypeDef  I2C_InitStructure;

    RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1, ENABLE);
    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB, ENABLE);
    RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO, ENABLE);

    /* Configure I2C_EE pins: SCL and SDA */
    GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_6 | GPIO_Pin_7;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_OD;
    GPIO_Init(GPIOB, &GPIO_InitStructure);

    /* Configure the I2C event priority */
    NVIC_InitStructure.NVIC_IRQChannel                   = I2C1_EV_IRQn;
    NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;
    NVIC_InitStructure.NVIC_IRQChannelSubPriority        = 0;
    NVIC_InitStructure.NVIC_IRQChannelCmd                = ENABLE;
    NVIC_Init(&NVIC_InitStructure);

    /* Configure I2C error interrupt to have the higher priority */
    NVIC_InitStructure.NVIC_IRQChannel = I2C1_ER_IRQn;
    NVIC_Init(&NVIC_InitStructure);

    /* I2C configuration */
    I2C_InitStructure.I2C_Mode = I2C_Mode_I2C;
    I2C_InitStructure.I2C_DutyCycle = I2C_DutyCycle_2;
    I2C_InitStructure.I2C_OwnAddress1 = I2CSLAVE_ADDR;
    I2C_InitStructure.I2C_Ack = I2C_Ack_Enable;
    I2C_InitStructure.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit;
    I2C_InitStructure.I2C_ClockSpeed = I2C1_CLOCK_FRQ;

    /* I2C Peripheral Enable */
    I2C_Cmd(I2C1, ENABLE);

    /* Apply I2C configuration after enabling it */
    I2C_Init(I2C1, &I2C_InitStructure);

    I2C_ITConfig(I2C1, I2C_IT_EVT, ENABLE); //Part of the STM32 I2C driver
    I2C_ITConfig(I2C1, I2C_IT_BUF, ENABLE);
    I2C_ITConfig(I2C1, I2C_IT_ERR, ENABLE); //Part of the STM32 I2C driver

    I2C1_Ram_Init();
}

void I2C1_ClearFlag(void)
{
    /* ADDR Flag clear */
    while((I2C1->SR1 & I2C_SR1_ADDR) == I2C_SR1_ADDR)
    {
        I2C1->SR1;
        I2C1->SR2;
    }

    /* STOPF Flag clear */
    while((I2C1->SR1&I2C_SR1_STOPF) == I2C_SR1_STOPF)
    {
        I2C1->SR1;
        I2C1->CR1 |= 0x1;
    }
}

void I2C1_EV_IRQHandler(void)
{
    uint8_t wert;
    uint32_t event;

    /* Reading last event */
    event = I2C_GetLastEvent(I2C1);

    /* Event handle */
    if(event == I2C_EVENT_SLAVE_RECEIVER_ADDRESS_MATCHED)
    {
        // Master has sent the slave address to send data to the slave
        i2c1_mode = I2C1_MODE_SLAVE_ADR_WR;
    }
    else if(event == I2C_EVENT_SLAVE_BYTE_RECEIVED)
    {
        // Master has sent a byte to the slave
        wert = I2C_ReceiveData(I2C1);
        // Check address
        if(i2c1_mode == I2C1_MODE_SLAVE_ADR_WR)
        {
            i2c1_mode = I2C1_MODE_ADR_BYTE;
            // Set current ram address
            i2c1_ram_adr = wert;
        }
        else
        {
            i2c1_mode = I2C1_MODE_DATA_BYTE_WR;
            // Store data in RAM
            Set_I2C1_Ram(i2c1_ram_adr, wert);
            // Next ram adress
            i2c1_ram_adr++;
        }
    }
    else if(event == I2C_EVENT_SLAVE_TRANSMITTER_ADDRESS_MATCHED)
    {
        // Master has sent the slave address to read data from the slave
        i2c1_mode = I2C1_MODE_SLAVE_ADR_RD;
        // Read data from RAM
        wert = Get_I2C1_Ram(i2c1_ram_adr);
        // Send data to the master
        I2C_SendData(I2C1, wert);
        // Next ram adress
        i2c1_ram_adr++;
    }
    else if(event == I2C_EVENT_SLAVE_BYTE_TRANSMITTED)
    {
        // Master wants to read another byte of data from the slave
        i2c1_mode = I2C1_MODE_DATA_BYTE_RD;
        // Read data from RAM
        wert = Get_I2C1_Ram(i2c1_ram_adr);
        // Send data to the master
        I2C_SendData(I2C1, wert);
        // Next ram adress
        i2c1_ram_adr++;
    }
    else if(event == I2C_EVENT_SLAVE_STOP_DETECTED)
    {
        // Master has STOP sent
        I2C1_ClearFlag();
        i2c1_mode = I2C1_MODE_WAITING;
    }
}

void I2C1_ER_IRQHandler(void)
{
    if (I2C_GetITStatus(I2C1, I2C_IT_AF))
    {
        I2C_ClearITPendingBit(I2C1, I2C_IT_AF);
    }
}

3 运行测试

3.1 I2C连续写入

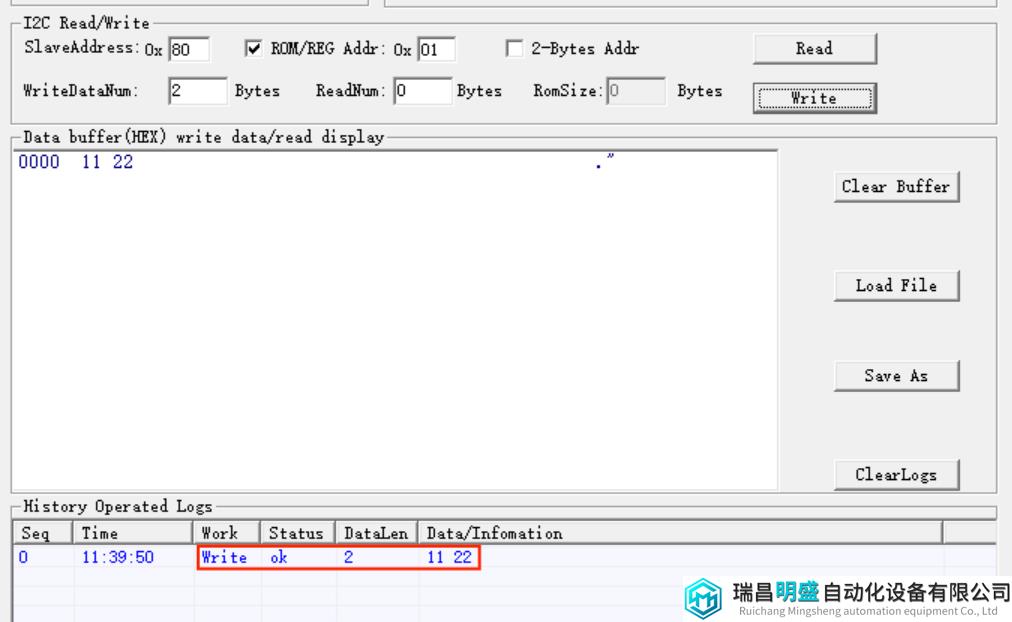

通过上位机工具写入：

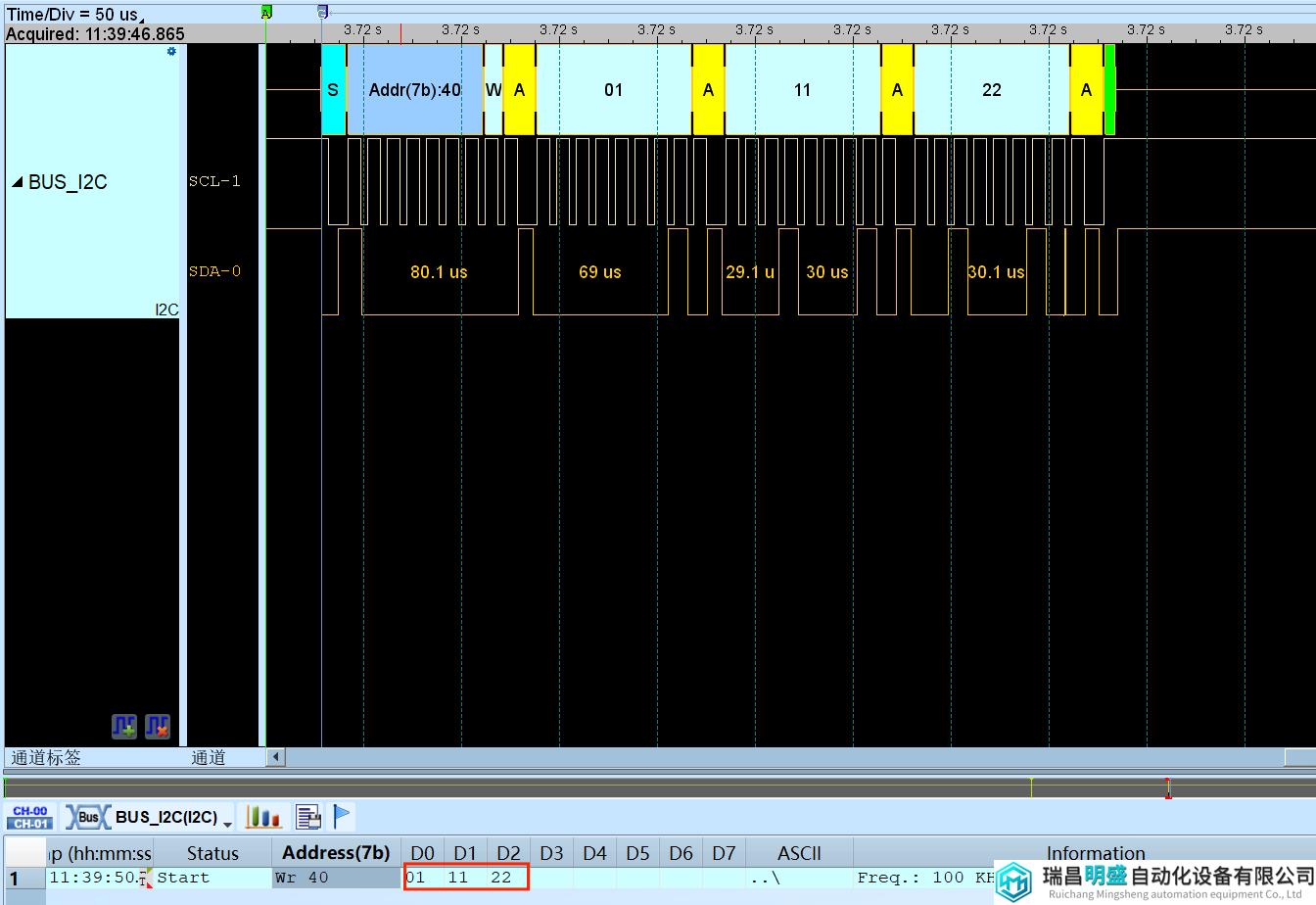

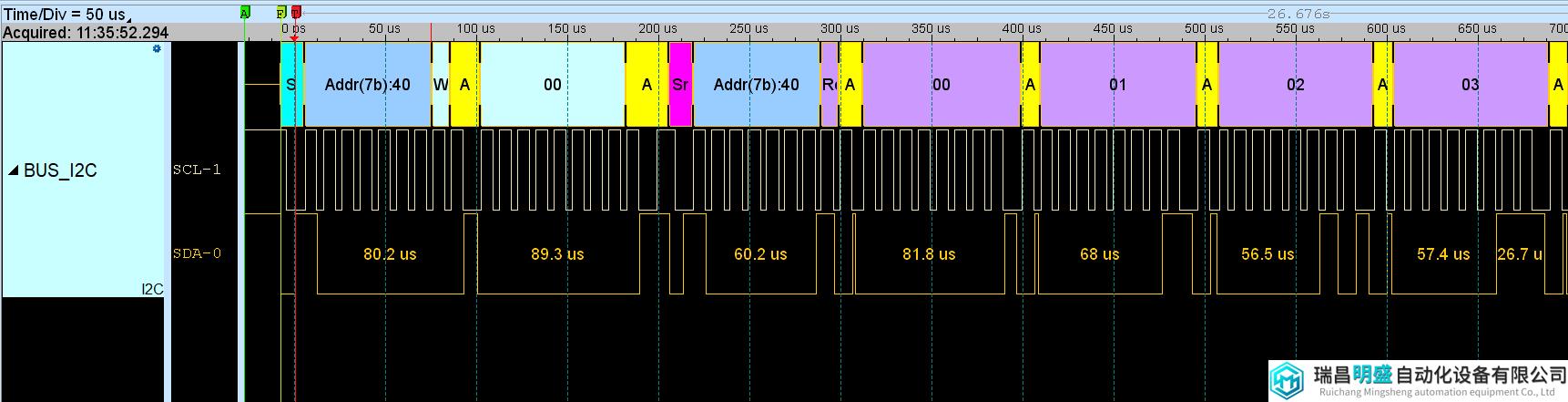

通过逻辑分析仪抓取波形：

3.2 I2C连续读取

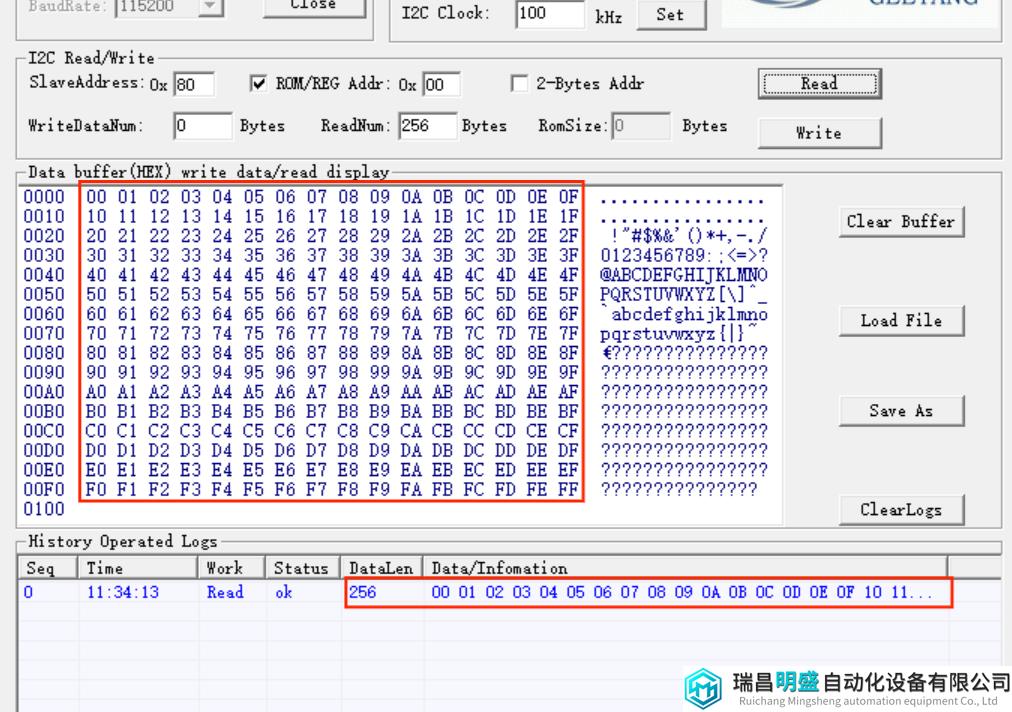

通过上位机工具连续读取256字节：

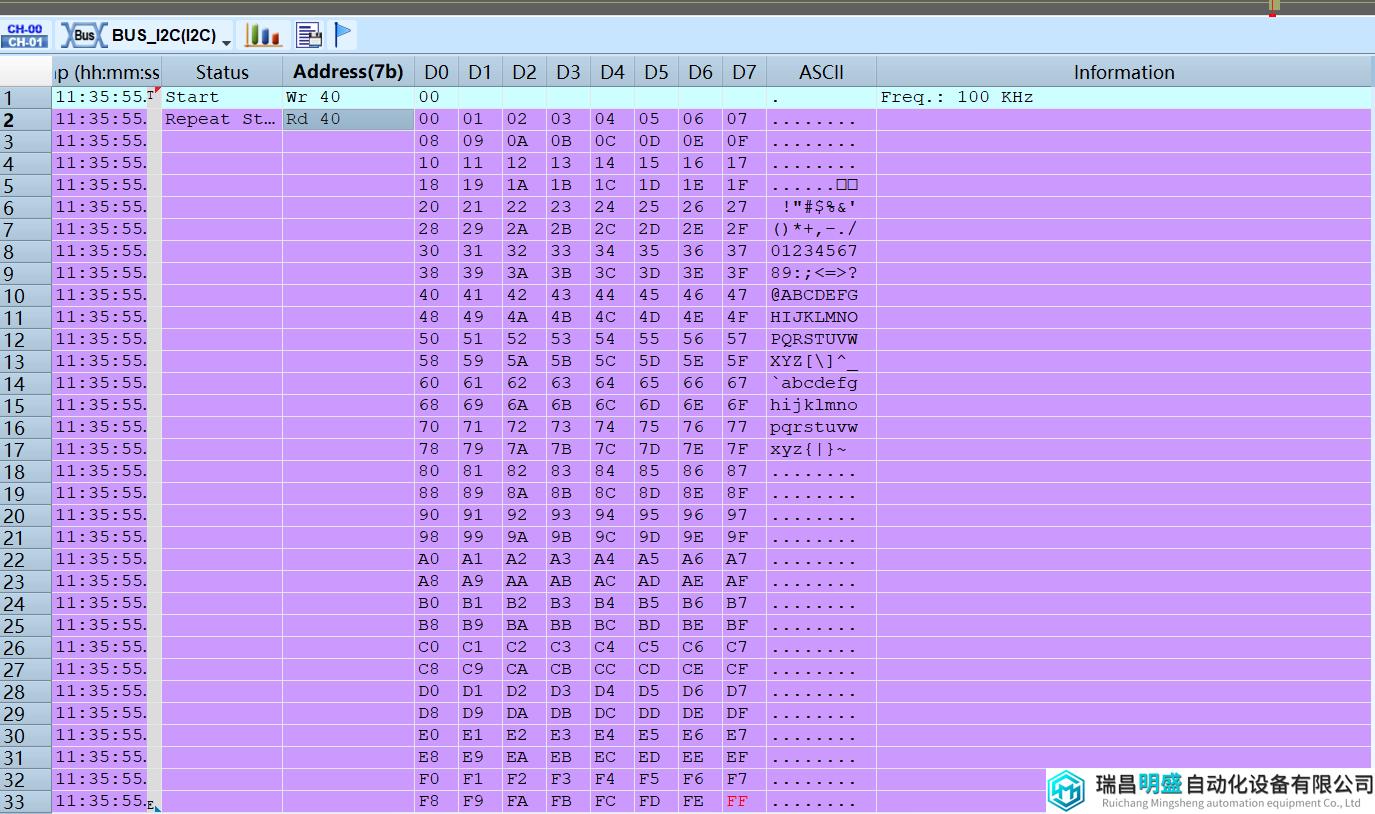

通过逻辑分析仪抓取波形：

3.3 I2C单次读写测试

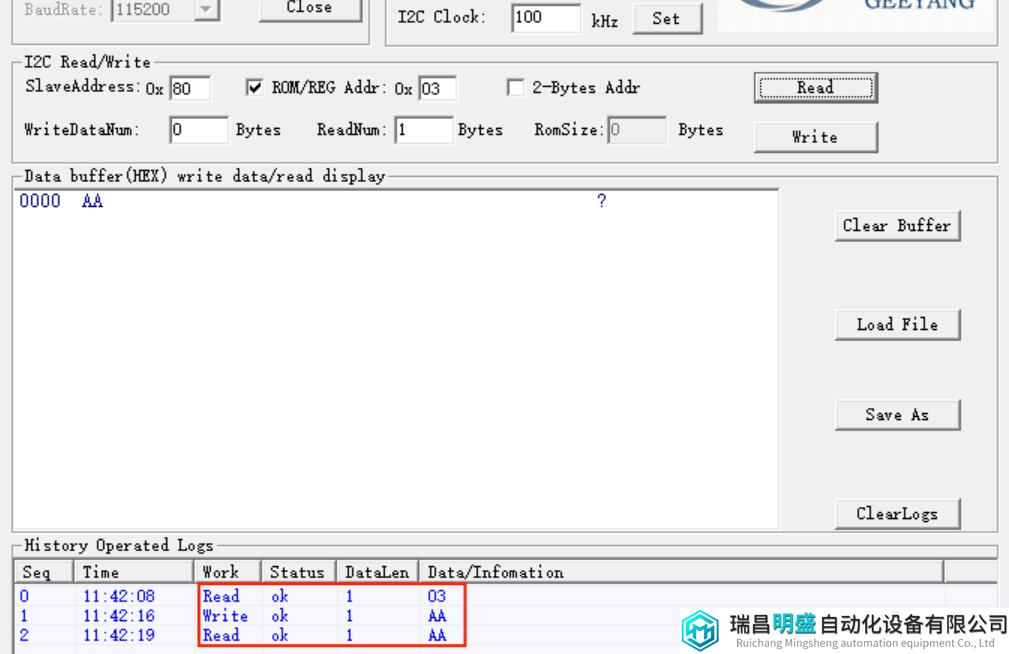

通过上位机工具读取原值，再写入新值，最后再读取新值：

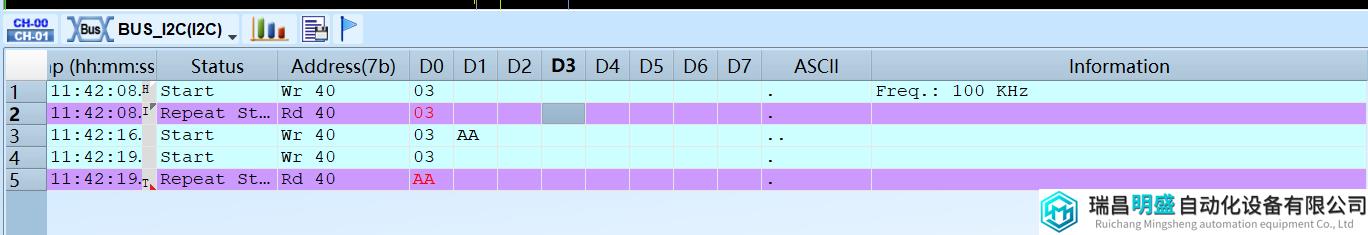

通过逻辑分析仪抓取波形：

4 总结

通过上位机工具的测试以及逻辑分析仪的解析，STM32的硬件I2C从机通信正常且稳定，读写速度测试了100k和400k，没有发现问题，至此测试完成。

好了，关于STM32如何设置从机模式就介绍到这里，如果你们有什么问题，欢迎评论区留言。

需要完整源码工程的同学可以自行下载：源码下载地址 https://download.csdn.net/download/ShenZhen_zixian/87950363

另外还有一篇HAL库版本的博客：STM32设置为I2C从机模式（HAL库版本）

如果这篇文章能够帮到你，就…懂的。
